If you are curious about how electronic devices work, understanding the fundamentals of the operation of their basic components is essential.

Every electronic device—from the smartphones in our pockets to the satellites orbiting our planet—contains components such as resistors, coils and transistors that are finely tuned to work together. Each resistor, capacitor, and transistor plays a critical role. In this article, I aim to illuminate some of the essential components of all electronic devices and their roles.

As we look into the specifics, starting with volts and watts and then venturing through the passive and active components of circuits, keep in mind that this article is simply an introduction. If you are curious for more, you can follow the links to online resources that you’ll find throughout the article. And, of course, there is a Tech Explorations course for anyone interested in learning about basic electronics in a hands-on way.

Components and Circuits

Circuits are the backbone of modern devices and systems. At the heart of these electronic circuits are fundamental components that each play an essential role in managing and manipulating electric currents and signals. These essential electronic components form complex circuits ranging from simple flashlights to sophisticated computer systems.

Integrated circuits stand out as they can consist of a few dozen to billions of these essential elements, such as resistors, capacitors, and transistors, in a compact package. The configuration and complexity of electronic circuits vary, but they frequently utilize a smaller subset of standard components. These include passive elements like resistors, which control the current flow, and capacitors, which store electrical energy in an electric field for rapid charge and discharge—much like miniature, quick-acting rechargeable batteries.

Controller board for CanoScan 5600F: Desktop colour flatbed scanner with film adaptor unit.

Other fundamental components in electronic circuits are inductors, which store energy in a magnetic field when electrical current flows through them, and diodes, including light-emitting diodes (LEDs), which allow current to flow in only one direction. Transistors, such as Bipolar Junction Transistors (BJTs) and Field-Effect Transistors (FETs), are crucial active components that can switch or amplify electronic signals. Additionally, oscillators, switches, and connectors work alongside these essential components to ensure the functionality and integrity of the electrical circuit.

Understanding Electronic Components

Electronic components are the building blocks for all electronic devices, each fulfilling a specific function or set of functions. Understanding their behaviour is central to the design of reliable electronic systems. Active components, such as transistors and diodes, actively control the flow of electrical current or modify electrical signals. These devices are pivotal for signal modulation, amplification, and rectification in an electrical circuit.

On the other side, passive components like resistors, capacitors, and inductors do not require a power supply to carry out their roles. Resistors are essential for creating voltage dividers and regulating current flow, ensuring that other components within the circuit receive the correct voltage level needed. Because of their ability to store and release electrical charge, capacitors are used to smooth out fluctuations in power supply and signal processing. Inductors are typically used in filtering applications to maintain steady current flow as they oppose electric current changes.

Voltage regulators, an integrated circuit, are necessary to maintain a constant voltage level within an electronic device. This makes them crucial for sustaining performance and preventing damage to sensitive components. Each component interacts within the circuit to control and manipulate the electrical energy and signals, underpinning the functionality of countless electronic devices.

Exploring Electronic Circuits

Delving deeper into electronic circuits, one must understand how these components are interconnected, typically on a printed circuit board (PCB), to perform their intended functions. To ensure that electronic signals are processed correctly, bypass capacitors are often positioned near other components to mitigate noise and voltage fluctuations.

Electronic circuits are designed to control and steer the flow of electric current to facilitate various electrical and electronic tasks, such as amplifying electrical signals, performing calculations, and transmitting data. From simple circuits that light up an LED to complex ones that power supercomputers, the arrangements of these essential electronic components determine the behaviour and capabilities of electronic devices.

Integrated circuits, including microprocessors and memory chips, are at the core of modern electronic systems. They enable many functions, from computing and digital communication to sensing and automation. Together, these components create intricate networks that allow for precise control and manipulation of electrical and electronic signals, making the vast array of today’s technology possible.

Power and Energy

Power electronics centres on the dynamic control and conversion of electrical power, a process vital in various applications. Critical components like inverters, converters, and variable-speed motors work to adjust and modify the power to suit specific needs. Batteries are also integral to this system, serving as reservoirs of electrical energy that can be tapped into as required.

Mechatronics further refines the integration of mechanical and electrical systems. Combining actuators, sensors, and various mechanical and control elements enhances precision and adaptability across operations and system designs. This synergy enables more complex and responsive machines and is pivotal in automation and robotics.

Minimizing power loss is a top priority within power electronics systems to ensure they operate with exceptional efficiency and speed. Ensuring swift response times in electronic equipment translates to better performance and lower energy consumption, which is increasingly important in a world that demands eco-friendly technology.

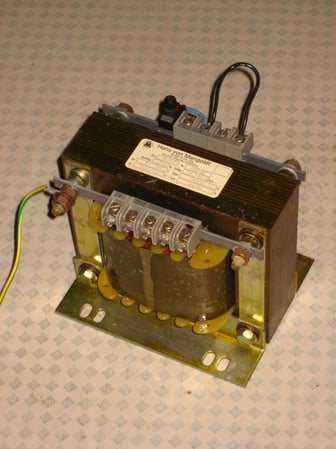

Transformers play an essential role in power transmission networks, adeptly managing voltage levels to suit the demands of various distances and destinations. Adjusting power line voltages facilitates the efficient distribution of electricity while maintaining safety and reliability standards.

ZngZng, CC BY-SA 3.0 https://creativecommons.org/licenses/by-sa/3.0, via Wikimedia Commons

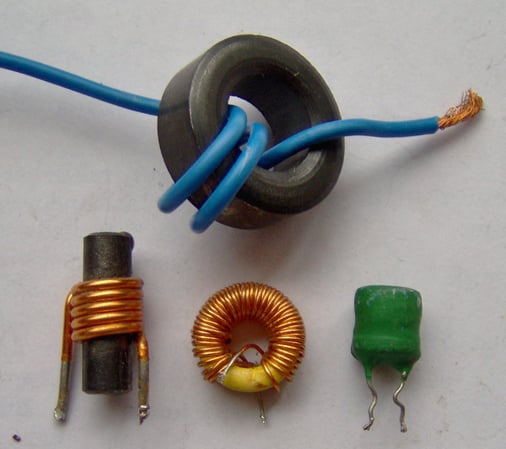

Similar to capacitors, inductors can store energy, albeit temporarily. Their application in energy storage is exemplified by their use in switch-mode power supplies, a common component in devices like desktop computers. Here, inductors facilitate the smooth transition of power from source to circuit, ensuring that energy is delivered controlled and efficiently.

WizardTim, CC BY 4.0 https://creativecommons.org/licenses/by/4.0, via Wikimedia Commons

Voltage and Current Flow

While simple in concept, capacitors play a critical role in managing voltage and current flow within electronic systems. Their unique characteristic of blocking direct (DC) signals while permitting alternating (AC) signals makes them indispensable for AC applications.

When charged to a voltage V, the energy stored within a capacitor can be expressed as E = 1/2 CV², offering a measure of the potential power at one’s disposal. While ideal capacitors are envisioned as devoid of resistance and inductance, real-world capacitors possess a finite effective series resistance, which can impact their performance.

For a capacitor to allow current flow, the voltage across it must be dynamic, changing over time, as seen with an AC signal. In electronic circuits, capacitors’ ability to store electrical charge and energy within an electric field is crucial for timing, filtering, and stabilizing voltage and power supply functions.

Power and Energy in Electronic Systems

In electronic systems, components like inductors and capacitors are not just passive participants but key players in controlling and storing power and energy.

Miguel, CC BY-SA 3.0 http://creativecommons.org/licenses/by-sa/3.0/, via Wikimedia Commons

Capacitors serve as temporary energy storage vessels, smoothing out fluctuations in power supply and allowing intuitive control of current flow by selectively blocking and permitting DC and AC signals, respectively. Inductors are equally vital, with their energy storage and transfer capabilities underpinning the functionality of high-tech devices in critical sectors.

Mechatronics and power electronics work in tandem to enhance control over mechanical and electrical systems. By leveraging the compositional strengths of actuators, sensors, and well-choreographed controls, these fields stand at the forefront of technological innovation, creating more intelligent, efficient, and capable systems than ever before.

Active and Passive Components

Understanding electronic circuits requires a grasp of two primary types of electronic components: active and passive. Both types are essential for the operation of electronic devices, yet they perform fundamentally different functions within an electrical circuit.

Passive Components: Resistors, Capacitors, and Diodes

Passive components are the backbone of electronic circuits. They do not require an external power source and can modify or store electrical signals. Resistors, for example, are vital for managing the flow of electric current. They provide a precise resistance level that helps regulate voltage levels within a circuit, divide the voltage where necessary, and determine the path and intensity of current flow.

Capacitors are designed to store energy in an electric field as temporary holding cells, similar to low-capacity batteries. They release this energy when needed, enabling them to stabilize voltage levels, filter out unwanted frequencies from signals, and delay reactions within a circuit.

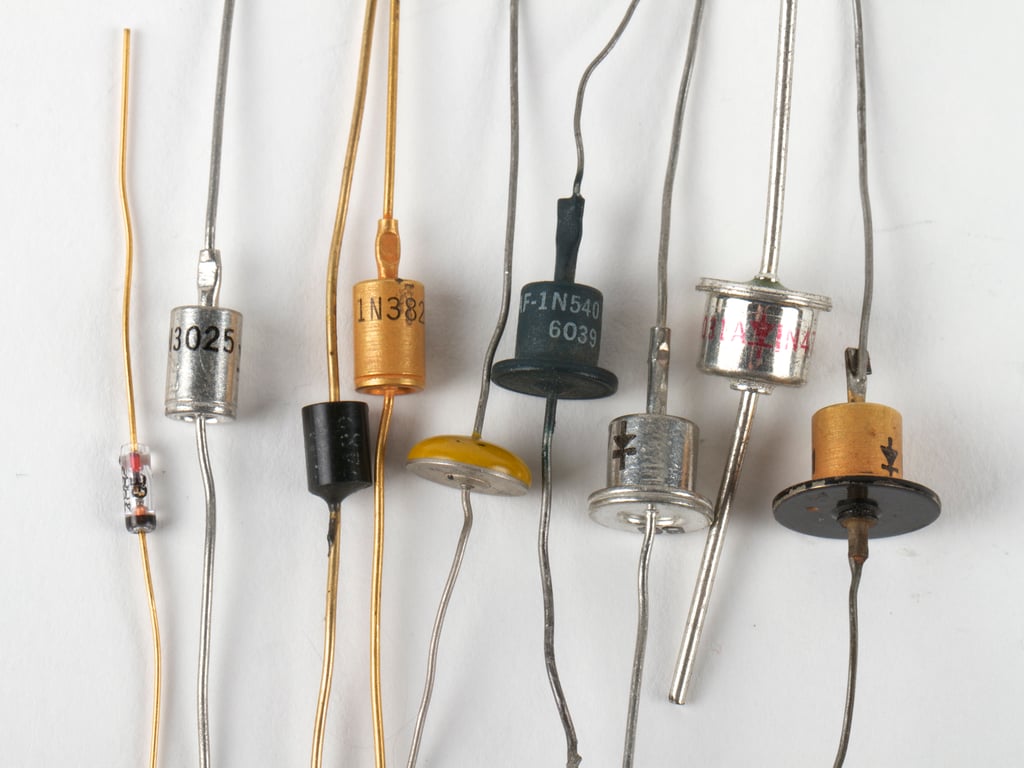

Diodes are another form of passive component, albeit with active characteristics, as they are capable of directional current control. This allows diodes to facilitate current flow only one way—a crucial feature in applications such as signal rectification, where alternating current (AC) is converted into direct current (DC), and signal modulation, which is vital for communication systems.

Lenore Edman from Sunnyvale, CA, CC BY 2.0 https://creativecommons.org/licenses/by/2.0, via Wikimedia Commons

Active Components: Transistors and Integrated Circuits

In contrast to passive components, active components such as transistors and integrated circuits (ICs) require an external power source. These components can actively control, amplify, or switch the electrical signals in a circuit, often performing intricate operations that go well beyond the capabilities of their passive counterparts.

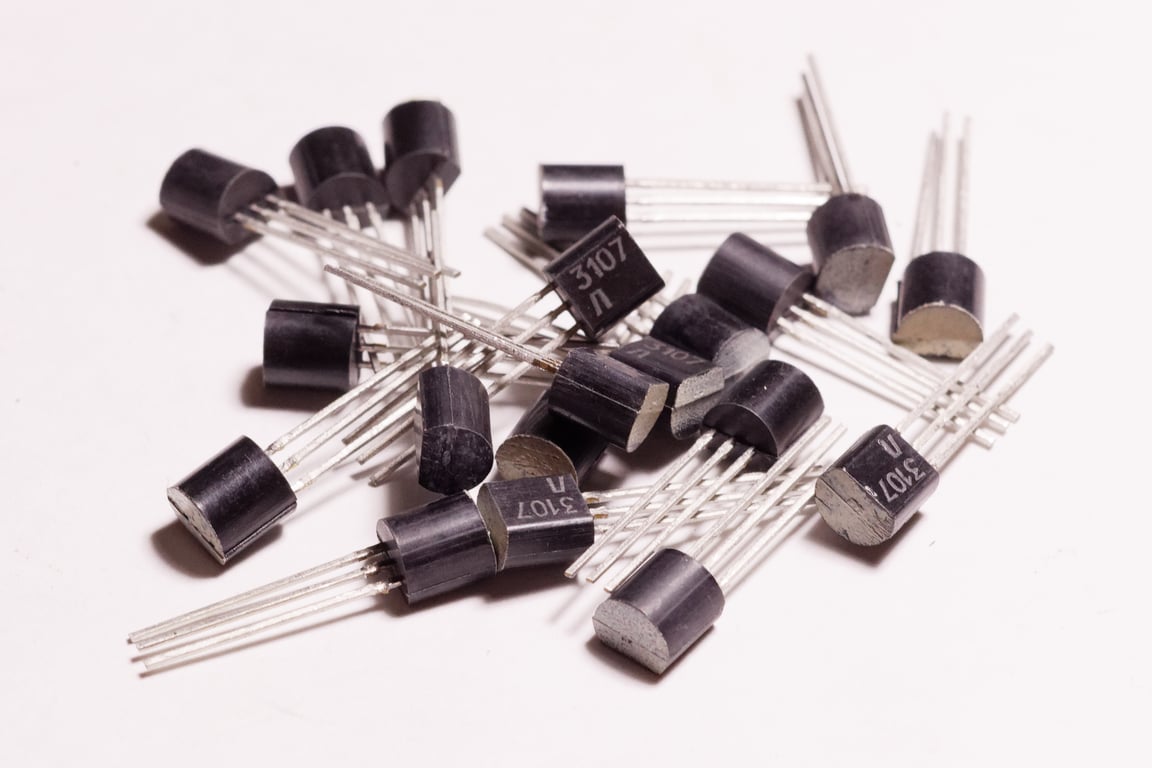

Transistors, particularly those like the Bipolar Junction Transistor (BJT) and the Field-Effect Transistor (FET), are the basic building blocks that govern current control. They function as amplifiers by taking a small input electrical signal and producing a much larger output signal, enabling various applications from simple switching to complex signal processing.

Retired electrician, CC0, via Wikimedia Commons

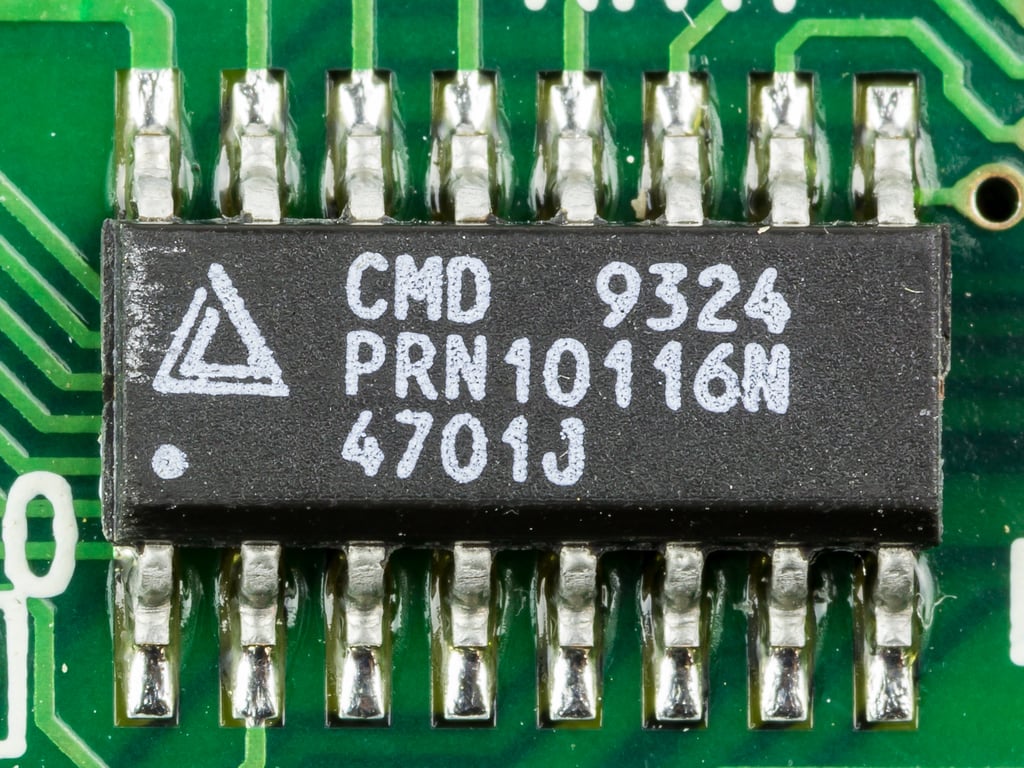

Integrated Circuits are more complex and potentially contain thousands to billions of transistors and other electronic components like resistors and diodes on a single semiconductor chip. These miniaturized circuits have revolutionized electronics by offering incredible functionality in a compact form, and they’re the cornerstone of modern electronic devices like computers, smartphones, and a myriad of others.

© Raimond Spekking

The interplay between active and passive components within electronic circuits composes the symphony of an electronic device’s function. While active components are often seen as the ‘doers’, amplifying and switching electronic signals, passive components like resistors, capacitors, and diodes provide essential support, shaping the electric current and voltage to safeguard electronic systems’ integrity and desired functionality. Neither simple nor complex electronic operations would be feasible without passive and active components.

Switches and Relays

Switches and relays are fundamental components that serve as mediators in the control of electrical circuits. Their primary function is to manage the continuity and flow of current based on specific conditions, enabling or disabling the flow as required.

Types of Switches and Their Functions

Toggle Switches: A staple in household wiring, these switches employ a simple mechanism that connects and disconnects two conductive pieces to control a device’s power. They are characterized by their lever-style actuator, which is typically flicked up or down to establish or break the circuit.

Push Button Switches: Universally recognized as an on-off interface on many gadgets, push-button switches change states with a simple press. They are found in many daily applications, from household appliances to industrial controls, showcasing a straightforward design between 0 (open circuit) and 1 (closed circuit).

Selector Switches: Known for their versatility, selector or rotary switches can manage multiple circuits or control variable inputs through a rotating selection knob or handle. These switches select predefined positions, each corresponding to a unique circuit configuration.

Switches play a critical role by responding to physical stimuli, such as human interaction or mechanical movement, to alter the status of an electrical signal mechanically. They are the actionable components that command circuits to spring to life or halt, distributing electrical power to an array of electronic components.

Electromechanical Relays and Solid-State Relays

Electromechanical Relays: These relays use an electromagnet to operate a switch mechanically. When an electric current passes through the coil, it creates a magnetic field, which moves the armature that opens or closes the contacts. The spring mechanism ensures that the contacts return to their original position once the magnetic field ceases. These relays can control various currents, making them adaptable across various applications.

Solid-State Relays (SSRs): Unlike their electromechanical counterparts, SSRs have no moving parts and utilize semiconductor devices to switch the current. The input side typically includes a photodiode that, upon activation, illuminates and activates a photocoupler. This, in turn, triggers a semiconductor switch, such as a transistor or FET, on the output side. Solid-state relays offer rapid switching, precision, and durability, with no wear associated with moving parts found in electromechanical relays. Furthermore, they tend to operate with less electrical noise, which is advantageous in sensitive electronic environments.

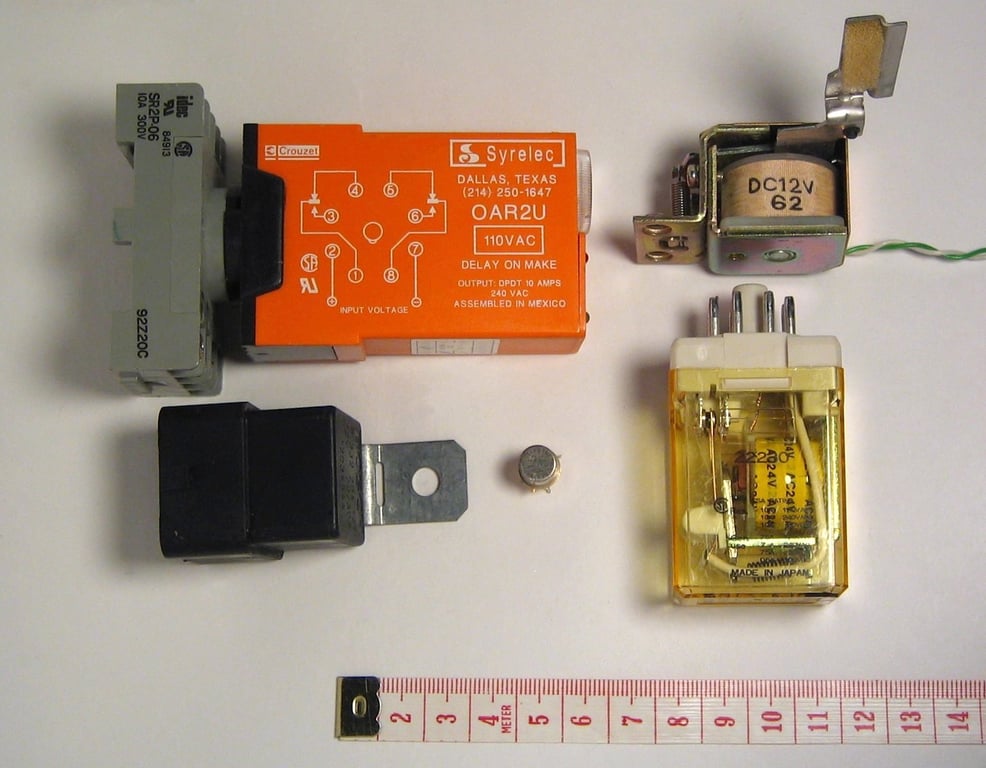

Relays, via Wikimedia Commons

Both relays feature contacts—essentially, conducting parts critical in establishing or disengaging the current path. They perform a vital function by using a small current to control a much larger one, acting as gatekeepers for electric power within circuits. Whether selecting an electromechanical or a solid-state relay, one must consider speed, reliability, cost, and the application’s specific needs.

In summary, switches and relays are indispensable for enabling and disabling the flow of electric current in a controlled and desired manner across electronic circuits, contributing significantly to electronic devices’ essential and intricate functions.

Resistors in Electrical Systems

Resistors are quintessential electronic components designed to oppose the flow of electric current purposefully. Their resistance is quantified in Ohms (Ω), a unit of measure reflecting their capacity to hinder current. In essence, resistors function as the flow regulators within an electrical circuit, and every resistor has a predetermined resistance value that aids in controlling the voltage and current passing through the circuit. This essential feature prevents components from being overwhelmed by electrical energy, thereby ensuring the stable operation of the electronic device.

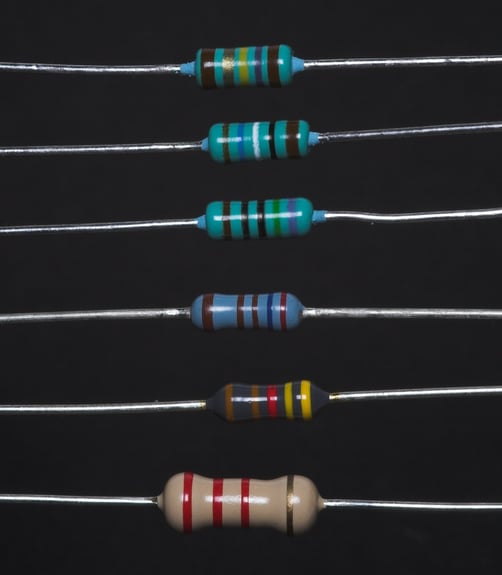

Afrank99, CC BY-SA 2.0 https://creativecommons.org/licenses/by-sa/2.0, via Wikimedia Commons

Resistors serve crucial functions such as fine-tuning signal levels for optimal performance, acting as buffers at the termination of transmission lines to prevent signal reflection and modulating power distribution in devices big and small. The broad applicability of resistors can be attributed to their ability to be arranged in various combinations. When lined up in series, resistors increase the total resistance, counteracting a stronger current flow. In parallel configurations, they provide alternative pathways, effectively reducing the overall resistance and thus allowing more current to flow within a circuit.

Resistors are usually marked with distinctive colour bands to facilitate immediate identification and placement within electronic circuits. These coloured stripes convey information about the resistor’s resistance value and tolerance—the permitted variation from the indicated resistance value. This coding system streamlines the process of building and troubleshooting electronic circuits for technicians and engineers.

Types of Resistors and Their Functions

Two primary types are identified within the vast array of resistors: fixed and variable.

Fixed resistors are the most common, with resistance values set during manufacture and unchangeable afterwards. Examples include:

  • Carbon Film resistors, which feature a layer of carbon film wrapped around an insulating rod to provide resistance;
  • Metal Film resistors, known for their stability and accuracy, are constructed similarly to carbon film but use a metal layer instead;
  • Wire Wound resistors, which are wound with metal wire around a core and are typically used in high-power applications;
  • Thick Film resistors, produced by firing a special paste onto a substrate, are prevalent in Surface-Mount Technology (SMT).

Variable resistors, on the other hand, invite adjustment to their resistance levels. Within this category, potentiometers and trim pots or presets are famous for their tunability:

  • Potentiometers are generally used for modifying signal levels, playing a crucial role in user-controlled input devices like volume control knobs.
  • Presets are miniature variable resistors operated with a small screwdriver, often found in circuit tuning and calibration tasks.

In applications where exacting precision is mandatory, such as in high-grade analog circuits, precision resistors with very tight tolerances (below 1%) are employed. These precision components ensure that voltage and current are stringently controlled, upholding the integrity of delicate electronic signals.

Variable Resistors and Current Limiters

Variable resistors such as potentiometers empower users to modulate resistance values manually through a dial or slider. As potentiometers adjust their resistance, they also function as voltage dividers, offering nuanced control over the voltage level at any point in the circuit. Users can select a desired voltage level smoothly by sliding the contact across a resistive element. This makes potentiometers integral to dimmers, volume controls, and other input devices requiring variable electrical output.

Concerning current regulation, current-limiting diodes, also known as constant current diodes or CLDs, maintain the current flow at a consistent level regardless of fluctuations in voltage across them. This characteristic renders them exceptionally useful in safeguarding sensitive circuit components from electrical overloads by assuring a steady and predictable current supply.

Both variable resistors and current limiters are pivotal in circuit design, affording engineers precision control over the flow of electrical charge. They are the dynamic elements within electronic systems that ensure consistent performance and render protective measures against unpredictable electrical environments.

By methodically integrating these components, electronic circuits are endowed with the resilience and sophistication necessary for the demands of modern electronic applications, preserving both device functionality and integrity.

Capacitors in Electronic Circuits

Capacitors are another fundamental component in electronic circuits, acting as temporary storage vessels for electrical energy. Capacitors can release energy when necessary and are instrumental in stabilizing voltage and current and overcoming brief power interruptions. Their primary function revolves around controlling the flow of electrical current, adjusting voltage levels within the circuit, and ensuring the seamless functioning of an electronic device.

A distinctive feature of capacitors is their ability to filter alternating current (AC) and direct current (DC). They can block the passage of DC voltage while allowing AC signals to pass through. This unique capability renders capacitors invaluable in coupling circuits that marshal AC signals between different stages of an electronic circuit while keeping DC elements separate.

Regarding capacitance, denoted by the letter C and measured in units called Farads (F), capacitors come in a variety of sizes, from the minute picofarads (pF) range to the larger microfarads (µF). This broad spectrum allows for a wide range of applications, including time-critical roles such as timing devices, tuners for resonant circuits, phase-shifting networks, and filtration to ensure clean outputs from power rectifiers by eliminating ripples from the rectified waveforms.

Different Types of Capacitors and Their Applications

Within the world of capacitors, diversity abounds. This variance allows them to cater to specific needs across different electronic applications:

  • Supercapacitors (Ultracapacitors): These capacitors boast colossal capacitance values, typically approaching the farad level, which equips them to handle tasks that call for rapid energy storage and release. They shine in power management and energy capture applications, like regenerative braking systems in electric vehicles.
  • Electrolytic Capacitors: Recognizable by their polarity, electrolytic capacitors have significant capacitance values, generally starting from 1 µF and climbing higher. This makes them a mainstay in the filtering and power-supply-smoothing sectors, particularly where lower frequencies are involved.
  • Ceramic Capacitors: Ceramic capacitors‘ versatility comes from their ability to store a variable charge—anywhere from a few picofarads to about 0.1 µF. Their cost efficiency and broad utility make them a staple in general electronic applications, including signal processing and noise suppression.

These types are essential in diverse electronic scenarios, varying from filtering circuits that clarify signal fidelity to DC power supply systems requiring smoothing. Their utility extends further to creating expected time delays, precise phase shifting, and filtration purposes to eradicate unwanted ripples from AC waveforms.

Capacitance Values and Load Capacitance

Capacitance measures a capacitor’s potential to store an electric charge, directly affecting the amount of energy it can hold. Higher capacitance values signify a greater capacity for energy storage. Capacitors are encountered in many capacitance values, measured predominantly in Farads, and these are categorically presented in microfarads (µF) and picofarads (pF) due to the practical energy storage levels required in electronics work.

Load capacitance is a critical specification. It indicates the required capacitance in an electronic circuit to guarantee its correct performance. When coupled with a load, a capacitor contributes the stored electrical charge to the load, effectively becoming a power source or functioning to correct the power factor in AC systems.

Load capacitance refers to the effective capacitance that a device or circuit presents to another device or circuit it is connected to. In simpler terms, it’s the capacitance “seen” by a signal source or an oscillator circuit at its output terminals. Load capacitance combines the intrinsic capacitance of the load device itself and any additional capacitance introduced by the connection, including PCB traces, wires, and other components.

The function of capacitors within a circuit extends to pivotal roles, such as isolating electronic components from direct current while allowing alternating current to pass, levelling out variations in power supply outputs, and granting AC systems power factor correction. This versatility underscores the irreplaceable nature of capacitors as indispensable allies in the design and execution of efficient and effective electronic circuits.

Introduction to Inductors

Inductors, often called reactors or coils, are indispensable passive electronic components critical in creating, manipulating, and storing magnetic energy within an electronic circuit. When electric current flows through its turns of insulated wire, encircling cores composed of air, iron, powdered iron, or ferrite materials, inductors come to life, safeguarding and maintaining the current flow.

These vital components of electronic systems are characterized by their inductance, which measures their ability to store magnetic energy. Represented with the symbol L, inductance is quantified in the Henry (H) unit. Values of inductance vary widely across the spectrum of inductor applications, typically ranging from 1 microhenry (µH) to 2 millihenry (mH), catering to various demands in electronic devices.

Inductors generate a magnetic field in response to an electric current and induce an electromotive force (e.m.f.) within themselves. Inductors play pivotal roles in electronic devices because they are very good at energy conservation. Their prominence is particularly noted in applications requiring the choking, filtering, or smoothing high-frequency noise, where their ability to handle rapidly alternating currents and voltages proves invaluable.

The principle of inductance and how inductors work

At the heart of an inductor’s operation lies the principle of inductance, a phenomenon where an inductor stores energy within its magnetic field and subsequently releases it as necessary. Acting as a guardian of current stability, inductors innately oppose any abrupt alterations in current flow. Their opposition against these changes manifests a strong magnetic field, providing a buffer that aids in applications requiring impedance matching and the transferral or storage of energy.

The inductance value of an inductor is not arbitrary—it is intricately dependent on the permeability of the magnetic core material, the area enclosed by the coil, the number of turns in the wire, and the overall length of the coil. The higher the number of turns and the greater the core’s magnetic permeability, the greater the inductance and, hence, more magnetic energy storage capability.

Inductors are foundational to the proper functioning of electronic filters and tuning circuits. Their capacity to store and transfer energy efficiently makes them essential for converting alternating current (AC) to direct current (DC). Moreover, inductors strategically manage the current flow, constructing a magnetic field that is seminal to the operation of an array of common electronic devices, including the ubiquitous radios and televisions that enrich our daily lives.

This essential yet subtle power of inductors, seemingly concealed within their coiled structure, allows them to regulate electronic signals and support devices in managing the tempestuous nature of electric current and the electronic signals it carries.

Typical uses of inductors in filters, chokes, and transformers

Inductors are crucial in various electronic applications, including filters, chokes, and transformers. In filters, inductors are often used with capacitors and resistors to create tuned circuits that selectively pass specific frequencies while blocking others. By controlling the impedance as a function of frequency, inductors help shape the filter’s response.

Chokes, also known as inductors, suppress high-frequency noise in electronic circuits. By restricting the flow of alternating current and allowing direct current to pass through, chokes help provide a smooth and stable power supply. This is particularly important in applications where interference and fluctuations must be minimized.

Conversely, transformers rely on inductors to transfer electrical energy from one circuit to another through electromagnetic induction. By varying the number of turns in the primary and secondary coils, transformers can raise or lower voltage levels to suit different power distribution and transmission requirements.

Overall, inductors play a versatile and essential role in electronic systems, contributing to various devices and circuits’ efficiency, stability, and functionality.

Overview of different types of inductors and their characteristics

Various inductors are used in electronic circuits, each with unique characteristics and applications. Here is a brief overview of some common types of inductors:

  1. Air-core inductors consist of a coil wound around a non-magnetic core, such as plastic or ceramic. They are known for their low inductance values and high Q factor, making them suitable for high-frequency applications.
  2. Iron-core inductors: These inductors have a coil wound around a magnetic core, usually made of iron or ferrite. They have higher inductance values than air-core inductors and are commonly used in power supply and filter circuits.
  3. Toroidal inductors: These inductors have a coil wound around a donut-shaped core, known as a toroid. They offer high inductance values and low electromagnetic interference and are used in various applications, including audio equipment and power supplies.
  4. SMD inductors: Surface-mount device (SMD) inductors are compact inductors designed to be mounted directly onto the surface of a circuit board. They come in various shapes and sizes and are commonly used in modern electronic devices due to their space-saving design.
  5. Variable inductors: These inductors have adjustable core materials or winding configurations, allowing for the variation of inductance values. They are used in tuning circuits, radio frequency applications, and impedance matching.

Each type of inductor has its characteristics that make it suitable for specific applications. By understanding the different types of inductors and their characteristics, engineers and designers can choose the suitable component to meet the requirements of their electronic circuits.

Understanding Diodes

Diodes are special semiconductor devices that strictly enforce a one-way street for electric current. They allow electrons to flow through in a single direction—forward from the anode to the cathode—and block it in the reverse. This behaviour is akin to a check valve in plumbing systems, ensuring water, or in this case, electrical current, doesn’t backflow.

These pivotal devices pair P-type and N-type materials, each contributing carriers—holes from the P side and electrons from the N side—that enable conductivity when joined together. The point of union is called a P-N junction, a frontier where the magic of diode rectification happens. Like bouncers at a club, diodes are critical in ensuring electrical energy flows smoothly in the intended direction.

One of the diode’s star roles is in rectification, where it converts AC, which oscillates back and forth like a pendulum, into DC, a steady stream in a single direction. This function is massively important because most electronic devices require DC to operate effectively, thus diodes are integral in virtually all power supply units.

Semiconductors, the heart of diode technology, tread a fine line, sharing properties of both conductors and insulators. This quality allows them to switch roles under different conditions, providing the controllable conductivity essential for diodes to perform their critical one-way traffic control within electronic circuits.

Types and Functions of Diodes

The diode family is diverse; each member is tailored to different electronic duties. The common types include:

  • Zener Diodes: The watchdogs of voltage in a circuit, Zener diodes spring into action to regulate voltage when it reaches their pre-set Zener voltage level, making them an indispensable part of power stabilization scenarios.
  • Light-emitting diodes (LEDs): These are the celebrities of the diode world. They convert electrical energy directly into light for everything from status indicators to the displays in our homes and devices.
  • Constant Current Diodes: These diodes maintain a constant electric current under varying voltage conditions, providing consistency in circuits where current control is crucial.

These types significantly expand the utility of diodes beyond simple current rectification:

  • They shape AC voltage into DC for power supplies.
  • LEDs transform the course of an electric current into vibrant lighting.
  • Zener diodes valiantly guard against overvoltage by keeping it within limits.
  • Constant current diodes serve as steady-handed current regulators across fluctuating voltages.

In essence, diodes provide electronic circuits the flexibility to manage and protect electrical energy in myriad applications, proving their status as a fundamental component in the electronic world.

The Concept of Diode Symbol and Voltage Regulation

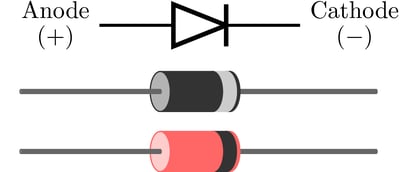

The diode’s symbolic representation in schematics—a triangle pointing towards a line—encapsulates its core function: the triangle denotes the direction of permissible current flow. In contrast, the line represents the barrier to reverse flow. This simple yet powerful symbol captures the essence of a diode’s ability to direct the traffic of electronic signals within a circuit.

TedPavlic, CC BY-SA 3.0 https://creativecommons.org/licenses/by-sa/3.0, via Wikimedia Commons

Among diodes, Zener diodes shine in voltage regulation, stoutly maintaining a constant voltage despite fluctuations in load or supply voltage. As the current’s path becomes precarious and threatens to wreak havoc, the Zener diode steps in, allowing reverse current to flow without significant damage when the threshold—known as Zener voltage—is breached.

Apart from Zener diodes, a plethora of other specialized diodes exist:

  • Schottky Diodes: Famed for their rapid switching capabilities and low forward voltage drop, ideal for power rectification.
  • Varactor Diodes: These are employed in radio receivers to fine-tune the frequency by exploiting their variable capacitance.
  • Avalanche Diodes: Built to endure high reverse breakdown voltages, similar to Zener diodes but with a different breakdown mechanism.

Diodes play many vital roles, carving their niche in electronic devices. Whether they smooth out the ripples in a rectified current to provide a steady DC power supply, clamp voltage spikes to protect sensitive components or demodulate signals in communication devices, diodes offer a crucial gateway to the control and stability of electronic signals.

Transistors: The Building Blocks of Electronics

Transistors are semiconductors that lay the foundation for many modern electronic devices, including amplifiers, digital logic circuits, and voltage regulators. They stand as a testament to the ingenuity of electronic engineering, having evolved from its inception to become the core element in virtually every electronic device we use today.

Transistors adeptly convert minute electrical currents into significantly larger ones as a vital intermediary, providing the crucial amplification that electronic devices need. Their role extends beyond mere amplification; as switches, they control the flow of current, which is fundamental in computing and digital electronics. This pivotal shifting has made transistors the building blocks that underpin complex systems—from the texture of sound in audio equipment to the precision of microprocessors in our computers and smartphones.

In the intricate dance of computing, transistors are the choreographers responsible for creating logic gates, the backbone of computer programs. They manipulate logical operations and function as finite storage elements, known as flip-flops, holding binary information vital for computing processes. Without the versatile transistor, the sophisticated electronics that shape our digital world—from the smallest microcontroller to giant data centres—would be inconceivable.

Bipolar Junction Transistors and Field-Effect Transistors

At the heart of the transistor family lie two principal branches: Bipolar Junction Transistors (BJTs) and Field-Effect Transistors (FETs). BJTs are characterized by their ability to amplify current, functioning as solid-state switches within some areas of operation, namely saturation and cut-off. These transit points are where the BJT is fully on or entirely off, respectively, making them ideal for digital switching applications.

On the other hand, FETs exert control over the current via an applied voltage signal, marking their territory within applications that demand amplification, switching, and signal modulation. Unique in construction and operation, FETs boast an exceptionally high input and significantly low output resistance, tailor-made for myriad circuit applications.

The diverse transistor family includes specific types like NPN and PNP for BJTs and variants such as JFETs, P-MOSFETs, and N-MOSFETs for the FET branch, each suited to particular electronic functions. Notable transistors include the widely-used BC547 and the 2N2222, available in various packages to accommodate different operational demands across electronic landscapes.

Understanding the Role of Transistors in Electronic Systems

Transistors’ ubiquitous presence in electronic systems largely hinges on their ability to amplify electrical signals, manipulating them with precision and reliability in various circuit configurations. Straddling the roles of switches and amplifiers, transistors are the linchpins that enable the creation of intricate electronic devices and complex systems. In amplifiers, they magnify the strength of electrical signals, whereas in digital logic circuits and voltage regulators, they decisively manage the current flow.

The utility of transistors expands to the construction of advanced electronics, where the challenge of accomplishing tasks, such as building modern computers, would be formidable without them. They lend themselves to applications that require the stabilization, control, and change of electronic signals, exemplifying their versatility.

Optimally designed with high input and low output resistance, transistors effectively function as solid-state switches in binary systems while amplifying signals in the active region. Whether ushering in an era of sophisticated computing or anchoring the simplest on-off tasks, transistors remain fundamental compositional elements in the vast domain of electronic systems.

Introduction to Integrated Circuits

Integrated circuits (ICs) are the marvels that drive the modern electronic revolution. These microscopic electronic circuits are formed on the surface of semiconductor materials, most commonly silicon. An integrated circuit is engineered to consolidate many electronic components—such as transistors, resistors, and capacitors—onto a single compact chip. This integration allows for impressive complexity, with some ICs cradling thousands or billions of electronic components. Their application spreads across various devices, from your smartphone and computer to the more mundane yet essential household appliances.

The advantage of ICs lies in their ability to deliver a compact and efficient electronic package. By amalgamating multiple functionalities into one tiny chip, space and energy consumption are reduced dramatically. This miniaturization accelerates performance, slashing both the physical footprint and fabrication expenses. One can encounter analog IC types that proficiently handle continuous signals, tasked with operations like amplification and voltage regulation. The leap from discrete components to integrated circuits has transformed how electronic devices are conceptualized, developed, and manufactured, culminating in an era where electronics are pervasive and indispensable.

How ICs Simplify Circuit Design

Integrated Circuits (ICs) have revolutionized the design of complex electronic systems. By combining what would otherwise be separate electronic components—transistors, resistors, and capacitors—into a unified, miniature circuit on a chip, elegance and efficiency are markedly enhanced. The dramatic downsizing of these circuits not only shrinks the physical size of electronic devices but also cuts costs significantly, making technology more accessible.

The assembly of these minute circuits plays a pivotal role in simplifying the once convoluted designs that overwhelmed circuit boards. Thanks to the ingenuity of innovators like Jack Kilby, whose seminal work led to the creation of ICs, various functions and features are now integrated coherently in a consolidated manner. Furthermore, ICs facilitate the integration of multiple functionalities—such as data processing, signal modification, and control—into a cohesive whole, vastly simplifying the overall blueprint of electronic devices and systems.

Common Types of ICs and Their Applications

Integrated circuits have forged the building blocks of modern electronic gadgets. From cellular phones to computers, these compact silicon chips are chock-full of transistors, resistors, diodes, and electronic components, acting as pulse points for functionality. Depending on their application, ICs can be dedicated to various roles: amplification, oscillation, timing, counting, logical operations, or the intricate processing of data and signals.

There is a wide array of ICs that are ubiquitous in electronic circuits. For example, operational amplifiers, or op-amps, are critical for signal amplification; timers are vital for process precision; comparators play a crucial role in decision-making circuits; and switch ICs are central to controlling the current flow path. Linear ICs, which typically deal with amplifying and processing signals, contrast with nonlinear ICs that serve logic tasks and digital processing.

Another category is the digital IC. These integrated circuits range from relatively straightforward—such as timers, counters, and switches—which enable the fundamental operations of digital technology to complex—microprocessors and memory chips—which are at the heart of data processing tasks. Together, these various types of ICs form the puzzle pieces that, when connected, produce the sprawling electronic canvas we interact with daily.

Through their myriad functionalities, ICs continue to shape and revolutionize the field of electronics, enabling the creation of sophisticated systems that are both incredibly compact and highly efficient.

Conclusion: Exploring Further and Expanding Your Knowledge

Understanding the essential electronic components and their functions is just the tip of the iceberg when diving into the fascinating world of electronics. As you continue your journey, several resources can help you expand your knowledge and delve deeper into this field.


  1. Practical Electronics for Inventors” by Paul Scherz and Simon Monk – This comprehensive guide covers electronics’ fundamental concepts and practical applications, making it an excellent resource for beginners.
  2. The Art of Electronics” by Paul Horowitz and Winfield Hill – Considered a classic in the field, this book explores electronics’s theoretical and practical aspects, providing valuable insights and guidance for more advanced learners.

Websites and Online Resources:

  1. All About Circuits—This website offers many articles, tutorials, and interactive tools to help you learn about electronics, covering basic principles and advanced topics.
  2. Electronics Tutorials—This website is a comprehensive electronic tutorial resource covering everything from semiconductor theory to circuit analysis and design.
  1. Adafruit—Known for its high-quality electronic components, Adafruit also provides an extensive collection of tutorials and projects for beginners and advanced learners alike.
  2. Tech Explorations—Yes, we have a course on basic electronics! This course teaches you how to assemble circuits that combine resistors, capacitors, diodes, and transistors. It also teaches you the basic circuit patterns and their governing mathematical equations so that you can calculate the voltage, current, power, and energy that develop within them.

Remember, the best way to learn electronics is through hands-on experience. Get a breadboard and some components, and start experimenting with small projects. Take them apart, improve them, and learn from your mistakes. Embrace the curiosity and the joy of discovery as you explore the ever-evolving world of electronics.

With a solid understanding of essential electronic components and the resources mentioned above, you can continue your exploration and take your knowledge to the next level. Happy tinkering!

Frequently asked questions on basic electronics

  1. What is the difference between capacitance and inductance?
  • Capacitance is the amount of energy stored in a capacitor, while inductance is the energy stored in an inductor’s magnetic field.
  1. What are the main applications of inductors in electronics?
  • Inductors are used in power regulators, filter circuits, signal isolation, transformers, oscillators, and voltage surge generation.
  1. How are inductors classified based on core material and operating frequency?
  • Inductors can be classified as iron-cored, air-cored, powdered iron-cored, ferrite-cored, variable, audio-frequency, and radio frequency inductors.
  1. What parameters should be considered when selecting an inductor for a circuit?
  • Inductance value, tolerance, maximum current rating, shielding, size, Q ratings, frequency range, resistance, and type of core used.
  1. What are some common manufacturers of inductors in the electronics industry?
  • Some common manufacturers include Murata, TDK, Bourns Inc., Abracon Electronics, AVX Corporation, Schaffner, and Signal Transformers.
  1. What is the purpose of a Darlington transistor?
  • A Darlington transistor delivers a high current gain from a low base current in applications requiring high current gain at low frequencies.
  1. How are IGBT and MOSFET transistors commonly used in electronics?
  • IGBT transistors are used as amplifiers and switches in devices like electric cars and air conditioners, while MOSFET transistors are used in integrated circuits to control power levels.
  1. What is the function of a transducer in electronics?
  • A transducer transforms one type of energy into another, often found in devices like speakers, phones, sensors, and thermometers.
  1. How does an inductor block AC and allow DC to pass through?
  • An inductor offers high resistance to AC currents, allowing DC to pass through and store energy as a magnetic field.
  1. What is the role of a capacitor in a circuit?
  • A capacitor stores electrical charge in a circuit and is essential for applications like rectifiers and filters.

Did I forget something? Did you find errors or omissions?

Your feedback is important to me.

If you have suggestions for improvements, notice any errors, or think something was omitted, please share your thoughts using the comments tool below.

Your input helps me enhance the quality of this content and better serve the community.

Thank you for contributing to the discussion.


You may also like

{"email":"Email address invalid","url":"Website address invalid","required":"Required field missing"}

The Vivid Unit is a small computer with an integrated color touch display sitting on my desk for a few weeks. Shawn sent it to me for a review, and to be transparent, I was

Read More
Vivid Unit + Arduino MKR1010 Flight data logger

It has been a few weeks since my last announcement. Work on the KiCad Like a Pro book update made it difficult to do anything else. It was KiCad and writing around the clock. Plus

Read More
KiCad Like a Pro 4th edition + AI Assistant + more news
