From simple screens to embedded AI systems
Until recently, embedded displays have forced an uncomfortable choice. On one side, single board computers like the Raspberry Pi offer flexibility and strong software support, but they are bulky, power hungry, and excessive for a permanently mounted panel. On the other side, microcontroller based displays are compact and efficient, but quickly reach their limits when you need graphics performance, audio, camera support, or anything related to AI.
The CrowPanel Advanced 7 inch display sits directly between those two worlds. It is not just a touchscreen. It is a complete embedded system designed from the ground up for vision, audio, and on device intelligence. Instead of running a general purpose operating system, it runs firmware, giving you full control over timing, performance, and power consumption. This design choice is key to understanding where this device fits best.
Hardware architecture designed for edge AI

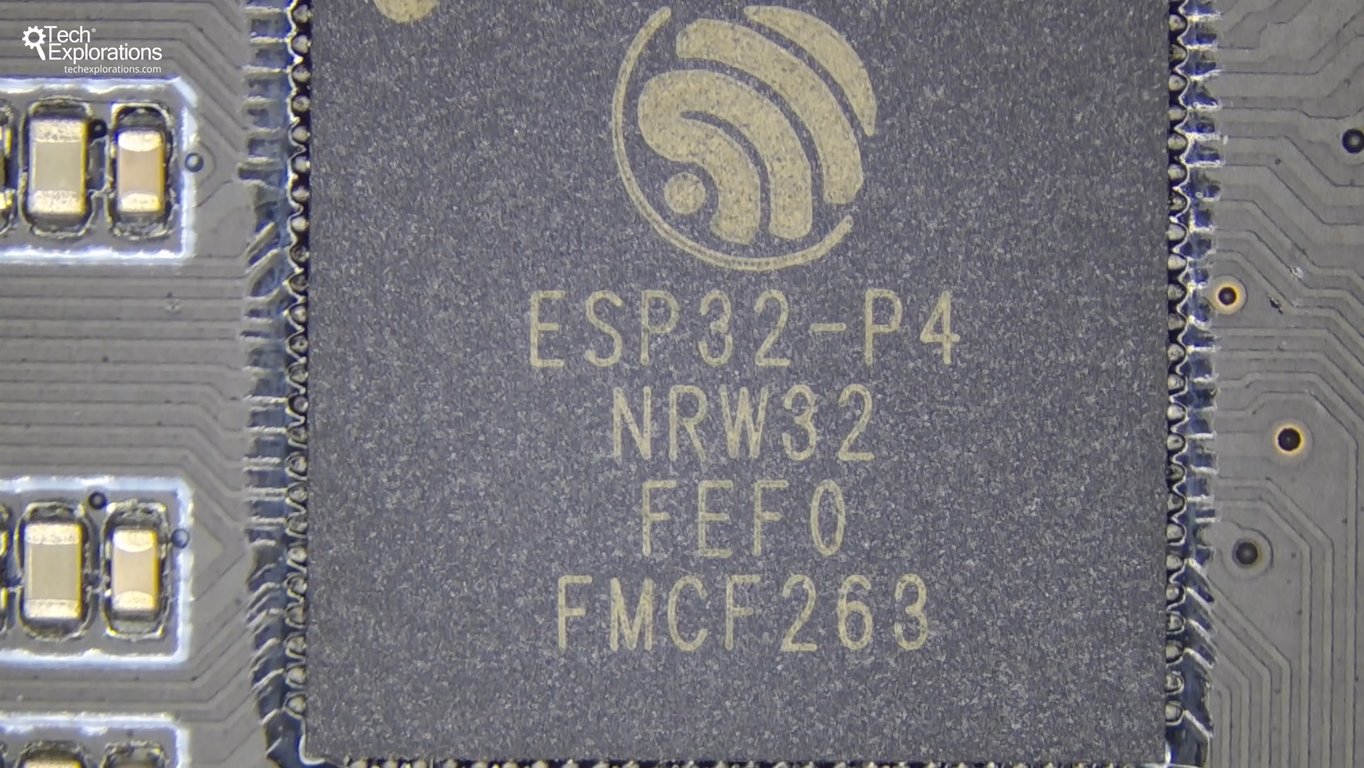

At the heart of the CrowPanel Advanced is the ESP32 P4, a new microcontroller from Espressif designed specifically for image and video workloads. Unlike earlier ESP32 variants, the P4 includes dedicated hardware blocks for image processing tasks such as color correction, pixel formatting, and video encoding. This means the chip can process camera data efficiently without overwhelming the main CPU cores.
Alongside the ESP32 P4 sits a second chip, the ESP32 C6. Its role is purely wireless communication, handling Wi Fi 6 and Bluetooth 5.3. Separating computation from radio duties avoids resource contention and improves overall system responsiveness. A useful mental model is to think of the P4 as the brain and the C6 as the voice and ears of the system.
This dual chip architecture is uncommon at this price point and mirrors design patterns used in more expensive industrial and consumer products .
Vision system with hardware acceleration
The board supports a dedicated camera interface for a 2 megapixel sensor. What makes this particularly interesting is that the ESP32 P4 includes a hardware image pipeline similar in concept to what you find in smartphones. The chip can also encode H.264 video in hardware, allowing live video streaming or recording without compromising the performance of the rest of the application. For edge AI use cases, this matters because it leaves enough processing headroom to run computer vision models such as face detection locally on the device.
Local processing avoids cloud dependencies, reduces latency, and keeps sensitive data inside the device. For security and privacy conscious applications, this is a major advantage over cloud based camera solutions .

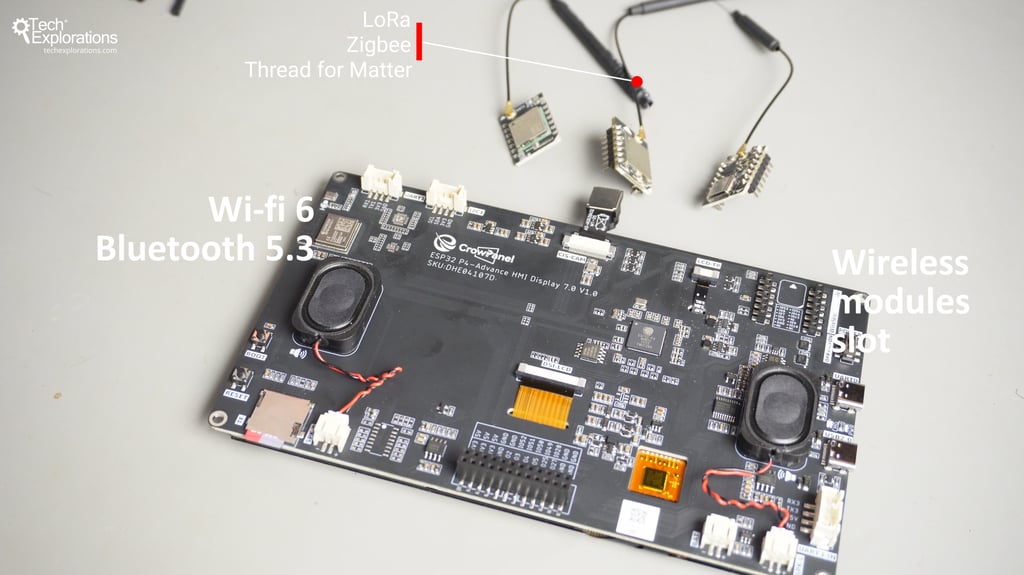

Flexible wireless connectivity
Out of the box, the CrowPanel Advanced supports Wi Fi 6 and Bluetooth 5.3 through the ESP32 C6. Beyond that, the board includes a slot for swappable wireless modules. Depending on the module you choose, the same hardware platform can communicate using Zigbee, Thread, LoRa, or other protocols commonly used in smart homes and industrial systems.
This modular approach is important. It allows a single display design to be reused across very different projects without redesigning the hardware. A wall mounted control panel might rely on Zigbee and Thread for Matter compatibility, while a remote sensor dashboard might use LoRa for long range communication.
Audio input and output for voice driven interfaces
The CrowPanel Advanced includes built in microphones and dual speakers. Combined with the processing capabilities of the ESP32 P4, this enables voice driven interfaces without external hardware. Typical use cases include voice commands, audible alerts, intercom style communication, and feedback for accessibility focused designs.
Running audio processing locally again avoids cloud dependency. For many applications, especially in homes and workplaces, this simplifies deployment and improves reliability.
Industrial grade operating conditions
According to the specifications, the device operates reliably between minus 20 and plus 70 degrees Celsius. This places it well within the range required for factory floors, machine interfaces, and public installations. It also explains why the device is positioned closer to industrial HMI panels than consumer tablets, despite its maker friendly price.
Software environment and development workflow

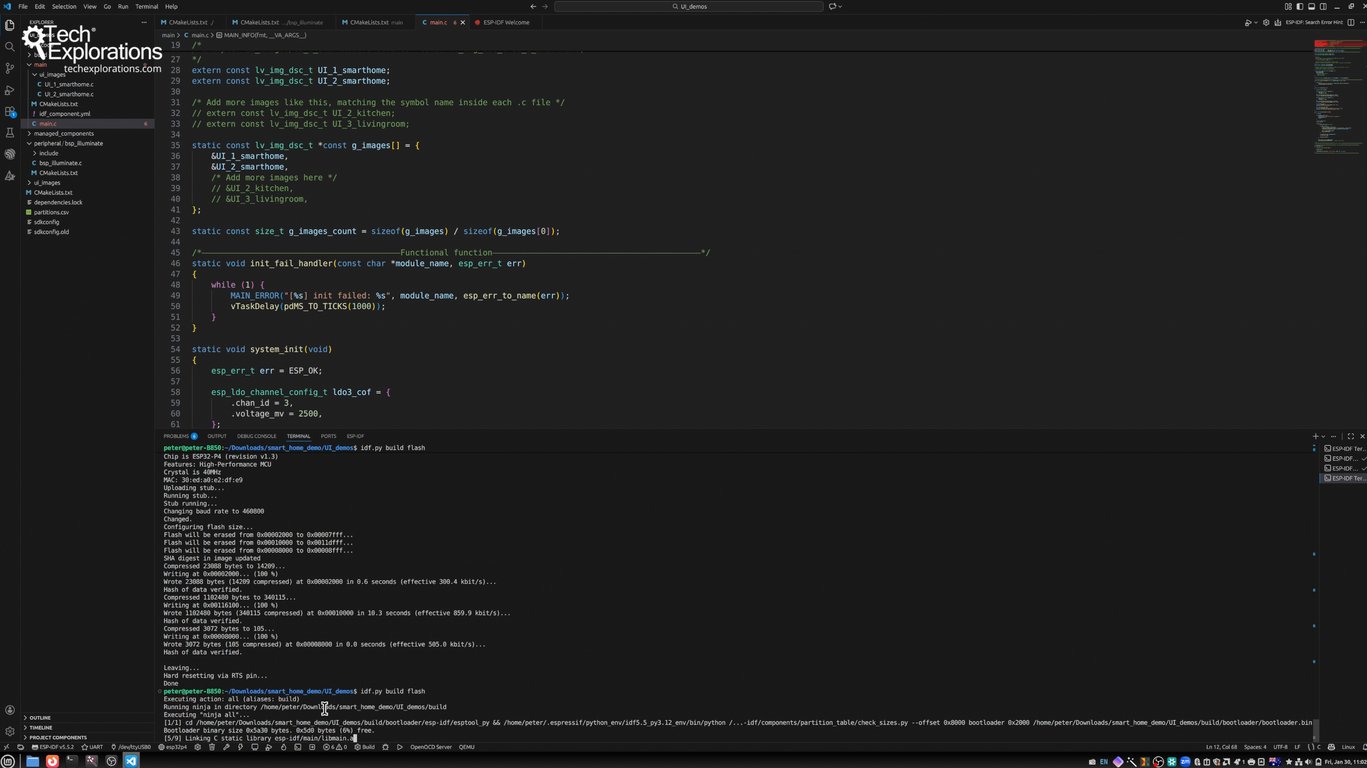

The CrowPanel Advanced is programmed using Espressif’s ESP IDF framework, with optional Arduino IDE support for those who prefer it. ESP IDF provides low level access to hardware features, real time scheduling, and robust peripheral drivers. For developers familiar with ESP32 boards, the learning curve is minimal.
Graphics are handled using LVGL, a widely used embedded GUI library that provides scalable vector graphics, animations, and a large set of prebuilt widgets. LVGL is commonly found in commercial products such as appliances, medical devices, and automotive displays, making it a good long term investment in learning.
Elecrow provides structured learning material and sample projects, including camera and audio examples, all hosted on GitHub. The documentation and examples are mature enough to support real projects rather than simple demonstrations.
Typical applications that make sense
Several application categories align naturally with this hardware.
A smart home control panel is an obvious fit. A wall mounted display that controls lighting, climate, and security benefits from touch input, voice commands, and local intelligence. The low cost makes it realistic to deploy multiple panels across a home.

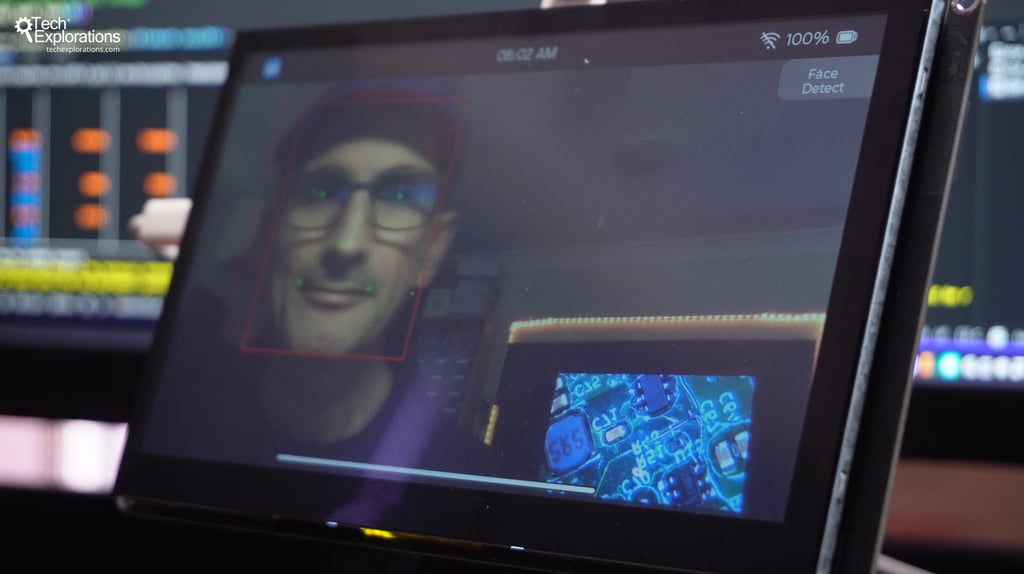

Security and access control is another strong area. With a camera and local face detection, the device can recognize known individuals, flag unknown visitors, and display live video without streaming data to external servers.
Industrial dashboards and room booking panels also benefit from instant boot times, deterministic behavior, and long term reliability. Unlike a general purpose computer, firmware based systems avoid background updates and unexpected software changes.
How it compares to Raspberry Pi and tablets
This device is not a tablet replacement and it is not trying to be. Tablets are optimized for consumer applications, batteries, and app ecosystems. Raspberry Pi boards are general purpose computers designed for flexibility rather than specialization.
The CrowPanel Advanced competes more directly with industrial HMI panels that often cost several times more. Its main advantage is that it delivers similar architectural ideas, such as dedicated graphics pipelines and real time control, at a price accessible to makers, educators, and small scale product developers .
Who should consider using it
This display makes sense if you want full control over software behavior, fast boot times, low power usage, and local AI processing. It is especially well suited for fixed function interfaces that run continuously.
It is less suitable if you need to run Linux applications directly, or if you want a plug and play experience without programming. For simpler display needs without camera or audio, lower cost alternatives in the same product family may be more appropriate.
What makes this generation interesting
The ESP32 P4 is still new, and devices like this are only beginning to appear. The real significance is not a single specification, but the convergence of features. Camera support, audio, AI acceleration, and flexible connectivity are now available on a compact display that costs less than many accessories.
That combination opens the door to applications that were previously impractical at this scale, from intelligent intercoms to context aware dashboards and smart mirrors. The hardware building blocks are finally accessible.
In the next article and video, I will focus on the camera interface, bring up a live video feed, and explore face detection on the device itself.
