optimizing 6-Layer PCB Stackups for EMI reduction in high-speed designs

A reference plane is a continuous layer of copper, usually ground or power, that serves as a low-impedance path for return currents. In high-speed designs, routing signals adjacent to these planes ensures return currents flow directly beneath the trace, minimizing electromagnetic fields.

Without this, currents take longer, detour paths, creating larger loops that radiate EMI like a loop antenna. In 6-layer PCBs, multiple ground planes allow for better isolation, reducing common-mode noise.

Always avoid slots or cuts in planes, as they force currents to detour, increasing inductance and EMI. Proper via connections between planes help maintain continuity.

This diagram shows effective ground plane techniques that keep return paths short and contained.

Controlling loop area and crosstalk

Loop area refers to the physical space enclosed by a signal trace and its return path, the larger it is, the more it acts as an antenna for radiating or receiving EMI. To control it, keep traces short and close to their references.

Crosstalk is unwanted coupling between adjacent traces, where a changing signal in one induces voltage in another, causing noise. In high-speed boards, this can corrupt data integrity.

Mitigate crosstalk by spacing traces appropriately, using ground guards between sensitive lines, or routing on different layers with planes in between. Differential signaling, where pairs of traces carry opposite signals, also helps cancel out noise.

Three reliable 6-layer stackup options

Traditional S-G-P-P-G-S configuration

This setup features signal layers on top and bottom (S), ground on layers 2 and 5 (G), and power on 3 and 4 (P). Its symmetry prevents board warping and provides good shielding for outer signals.

It's versatile for boards with multiple power rails, as the inner power layers can be split carefully. However, for ultra-high speeds, the separated power planes might introduce some noise if not decoupled properly.

High-speed preferred S-G-S-P-G-S

For demanding applications, I recommend Signal-Ground-Signal-Power-Ground-Signal. The inner signal layer is buried between two grounds, offering superior shielding and low-inductance returns.

This configuration excels in DDR memory or PCIe interfaces, where EMI from fast edges is a big issue. The dedicated grounds isolate signals effectively, but it requires careful power routing to avoid splits.

In mixed-signal boards, this helps segregate digital noise from analog sections.

Hybrid variant for mixed analog/digital boards

When analog and digital circuits coexist, a hybrid approach dedicates one ground plane to analog signals, keeping digital returns separate until a single connection point. This prevents digital switching noise from contaminating sensitive analog paths.

You might modify the traditional stackup by splitting a ground layer, but add ample decoupling at the bridge. It's ideal for audio devices or sensors, where low noise floors are critical.

Always simulate or prototype to verify isolation.

Routing & placement rules that help reduce emi

Stackup provides the foundation, but routing and component placement determine overall EMI performance.

Prioritize routing fast signals on inner layers, directly next to a plane for shielding. This setup creates a microstrip or stripline environment, controlling impedance and reducing radiation.

On outer layers, avoid board edges and parallel runs without separation to prevent crosstalk. Use length matching for differential pairs to maintain timing.

Strategic component placement and power distribution

Start by grouping components logically, noisy ICs like switchers away from quiet ones like ADCs. This minimizes noise propagation.

For power, use wide planes over thin traces to lower inductance. Scatter decoupling capacitors (e.g., ceramic types) near pins, creating local reservoirs that shunt high-frequency noise to ground.

In 6-layer designs, inner power layers allow efficient distribution, but add vias for connections.

Impedance control & via techniques

Via techniques matter just as much, since vias introduce parasitic inductance and capacitance. Poorly managed vias can create resonance stubs or disrupt return paths, turning small transitions into EMI sources.

Achieving consistent 50/100 Ω traces

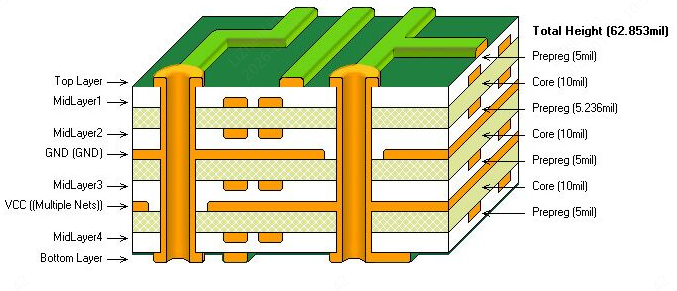

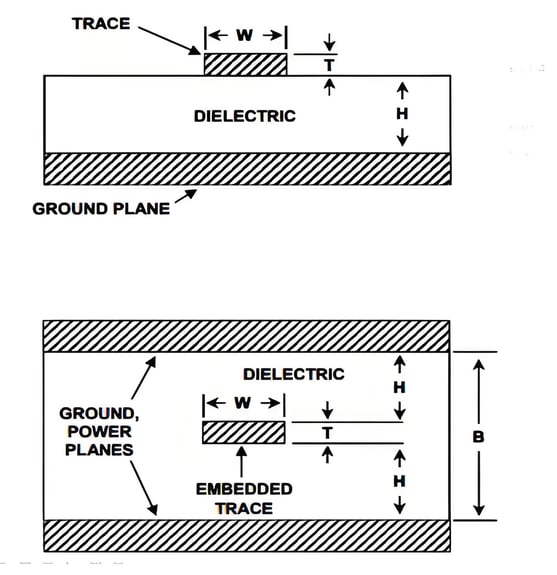

The key is precise trace geometry based on your stackup. Factors include dielectric thickness (prepreg between layers and core), material dielectric constant (Er around 4.2 for standard FR-4), copper thickness (1 oz common), and whether the trace is microstrip (outer, referenced to one plane) or stripline (inner, referenced to two).

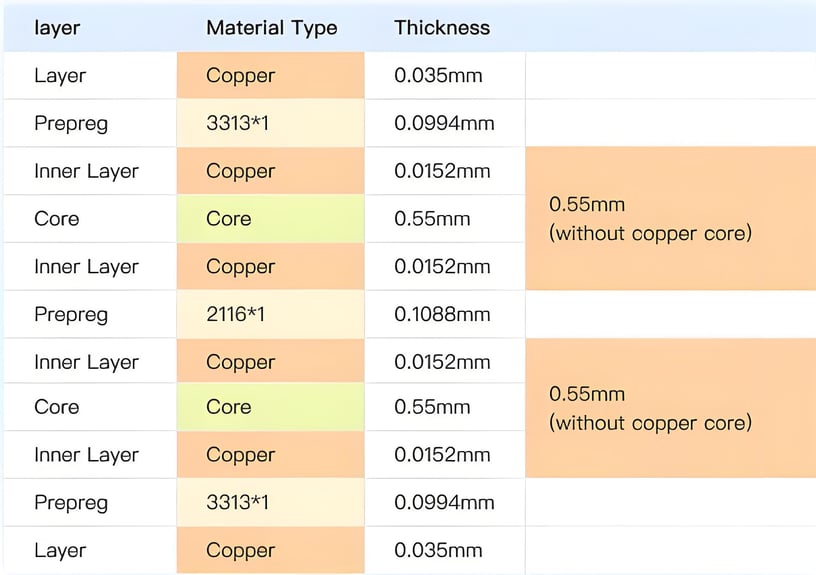

While designing your 6-layer stackup in KiCad, it’s crucial to verify your parameters against your manufacturer’s real-world capabilities. For instance, JLCPCB provides a transparent standard 6-layer stackup guide, offering pre-defined impedance-controlled structures (like JLC06161H-2116). Using these verified stackups during your KiCad setup ensures that your impedance calculations match the final fabricated board, reducing the risk of signal integrity issues.

Most fabs, including JLCPCB, provide free online impedance calculators or controlled-impedance manufacturing options, they'll adjust widths for you if you specify the target. For a typical 1.6mm 6-layer board, an outer 50Ω trace might be 0.25-0.35mm wide, while an inner stripline could be narrower due to tighter coupling.

Always request test coupons on the panel for verification, and aim for ±10% tolerance. For differential pairs, maintain tight spacing (often equal to trace width) for good common-mode rejection, which further suppresses EMI.

Effective via techniques: stitching, guarding, and best practices

Vias are unavoidable for layer changes, but in high-speed work, treat them carefully. A long via stub (unused portion) acts like a resonant antenna at certain frequencies, keep them short or use backdrilling if needed (though less common in cost-sensitive 6-layer boards).

Via stitching ties ground planes together with arrays of grounded vias, creating a low-impedance cage that prevents noise from spreading across splits and reduces slot radiation. Place them densely around high-speed areas, edges, or where signals change reference planes, providing an immediate return path jump.

A good rule: space stitching vias at 1/10 to 1/20 of the wavelength of your highest frequency harmonic (e.g., for 1 GHz, λ ≈ 150mm in FR-4, so <15mm spacing).

Optimizing via placement is only half the battle; the other half is cost-effective manufacturing. For 6-layer boards, JLCPCB’s high-precision drilling allows for smaller via sizes (down to 0.2mm drill / 0.4mm pad) without a significant price hike. This gives you more routing density in KiCad to maintain a solid return path, which is vital for high-speed designs.

Via guarding or fencing surrounds sensitive traces (clocks, RF lines) with a picket of grounded vias connected to planes, forming a Faraday-like shield against crosstalk and external fields.

Conclusion：your essential 6-layer emi checklist

To wrap things up, EMI reduction in 6-layer PCBs boils down to thoughtful planning and best practices.

Here's a handy checklist I've refined over projects:

With affordable services like JLCPCB, iterating on 6-layer designs is straightforward. Following these guidelines helps boards meet EMI requirements reliably.
