The Wrappa system from Wrapit Solutions is a direct attempt to fix common issues that Makers face when dealing with IoT projects. It replaces the code-and-compile workflow with a drag-and-drop visual interface built on Node-RED, running locally on a Raspberry Pi hub. I spent time with the starter kit to see whether it delivers on that promise, and where the edges are.
What’s in the kit
The starter kit contains two devices.

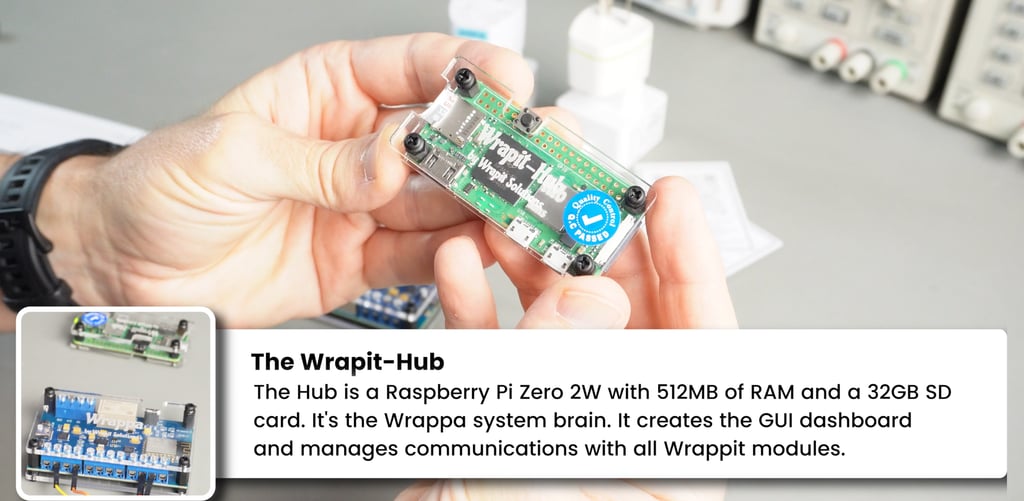

The Wrapit Hub is a small clear-cased unit built around a Raspberry Pi 02W with 512 MB RAM and a 32 GB SD card. It runs Node-RED, acts as the MQTT broker for your network, and serves the web dashboard you use to build and control flows.

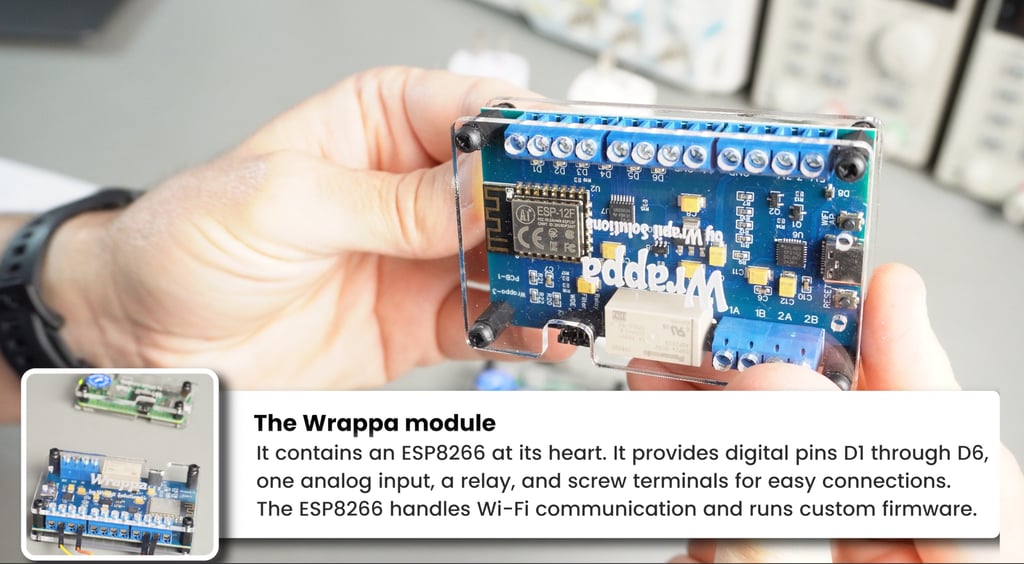

The Wrappa module contains an ESP8266 at its core. You get digital pins D1 through D6, one analog input, and screw terminals for connections — no breadboard, no soldering. The built-in relay switches up to 10 A. The module connects to your Wi-Fi network automatically and registers itself with the hub via MQTT.
Setup
Power the hub first. The Pi 02W takes around 30 seconds to boot. The hub creates a Wi-Fi hotspot called Wrapit Hub. Connect to it, enter your home network credentials, and both devices join your main network. Open the hub’s IP address in a browser and you’re in Node-RED, with the Wrappa module already detected. The web dashboard shows its IP address and signal strength shown.
From there, building a relay control flow is a matter of connecting nodes. No code. No configuration files. The click of the relay is audible within a minute or two of completing setup.
How it works
Communication between the hub and modules uses MQTT over your local Wi-Fi. The hub is the broker; the modules are clients. Everything stays on your network unless you explicitly configure remote access. For makers who are tired of cloud-dependent gadgets that stop working when a company changes its terms of service, this is a meaningful distinction.
Node-RED handles the visual programming. Wrapit Solutions has built custom nodes for the Wrappa hardware, so interacting with the module’s pins and relay requires no knowledge of MQTT or Node-RED internals; you just use their nodes. That said, because the foundation is Node-RED, you’re not locked out of more advanced flows. You can write your own nodes, use standard Node-RED nodes, and extend well beyond what Wrapit’s custom nodes provide. That flexibility does require understanding Node-RED and Node.js, so it’s not zero-effort, but the ceiling is high.
Analog input demo

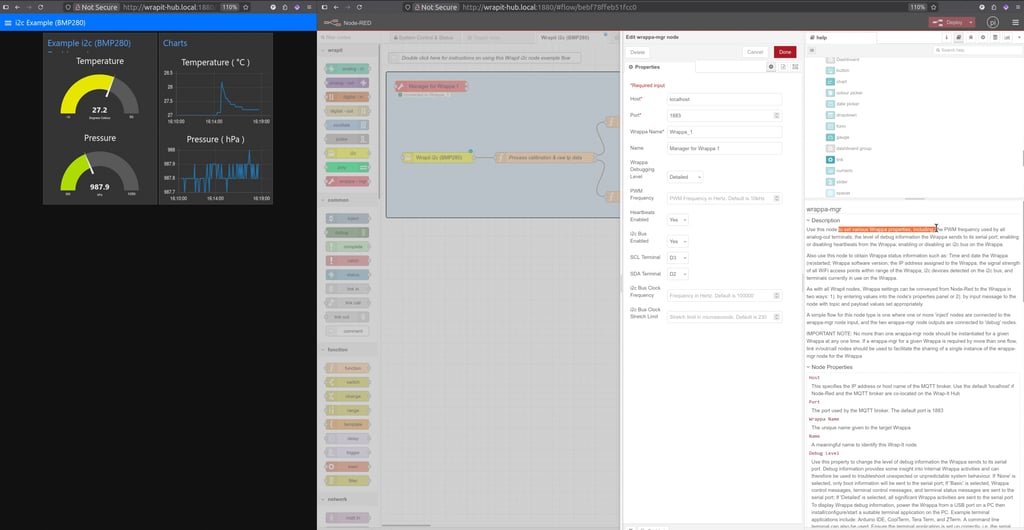

Connecting pin D1 to A1 with a jumper wire and building a simple flow lets you control a digital output voltage with a slider and read it back with an analog gauge. Move the slider, the gauge moves. This is a trivial example, but it illustrates the core feedback loop: physical hardware, visual interface, real-time response, no code.
Trade-offs
The Wrappa system makes deliberate choices, and some of them limit what you can do:
- Ecosystem lock-in The custom Node-RED nodes are specific to Wrapit’s hardware. If you want to move to different hardware later, you’re rebuilding. This is a reasonable trade for simplicity, but it’s worth knowing upfront.
- ESP8266 limitations The module is 2.4 GHz only, there is no 5 GHz Wi-Fi. For most home automation use cases this is fine, but worth noting if your network setup is complicated.
- No built-in battery support Portable operation requires an external battery pack. There’s no onboard battery management.
- Documentation is still thin Wrapit Solutions is a young company, and the written documentation hasn’t caught up with the hardware yet. The main resources are YouTube tutorials and the per-node help inside Node-RED’s flow editor. The in-editor help is genuinely useful once you’re building flows, but there’s not much to read before you get there.
Update: While I was editing this video, Rohan and Steve from Wrapit Solutions sent me a full pin reference document with a pin map, screw terminal roles, electrical limits, push button functions, and a getting started overview. It’s exactly what was missing. Worth checking the Wrapit Solutions website to see if it’s been published by the time you read this.
Verdict
For experienced developers, the Wrappa system is a useful rapid-prototyping tool. For makers, educators, or anyone who’s wanted to automate something but been stopped by programming complexity, it’s closer to what was actually advertised: a system that works out of the box, stays local, and lets you build useful things without a compiler.
The local-first architecture is genuinely refreshing. No subscription. No cloud account. Your data stays on your network. At around €99 for hub and one module (when I last checked), the price is reasonable when you factor in what you’d spend in time assembling and configuring an equivalent Arduino or ESP32 setup from scratch.
Thin documentation and ecosystem constraints are real limitations. Neither is a blocker — but both are worth knowing before you buy.
Next: I’ll connect an I²C environmental sensor to the Wrappa system and see how it integrates into a Node-RED flow. Subscribe to catch that video when it’s out.
