Introduction to Electronics - Filters: First-order filters in real life applications
Explore how first- and second-order filters shape audio, clean sensor data, smooth motor control, and fine-tune wireless signals in real-world electronics. Learn how mastering first-order filters builds the foundation for understanding more advanced second-order designs.

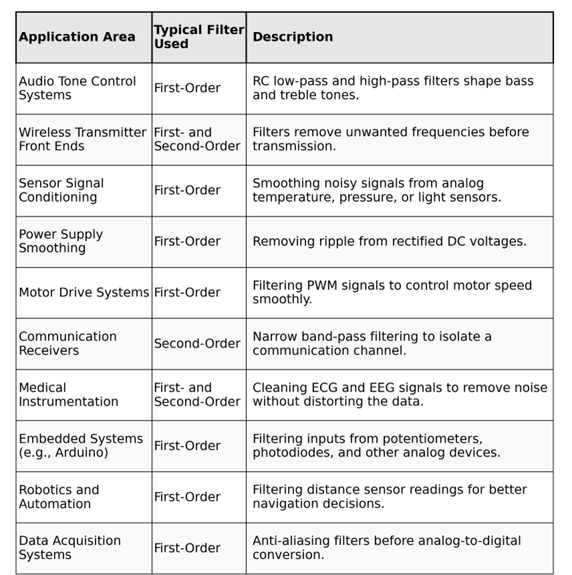

Real-world applications of first- and second-order filters
Here are some everyday applications for these filters:
Audio applications:
When you adjust the bass or treble controls on a music player, simple first-order filters are shaping the sound. Capacitors and resistors modify the balance of low and high frequencies to match your preference.
Sensor inputs:
An Arduino reading a temperature sensor can receive noisy signals due to environmental interference. A small RC low-pass filter, using just a resistor and a capacitor, can significantly improve the quality of the sensor reading.
Motor control:
When controlling a motor’s speed with PWM (Pulse Width Modulation), a first-order low-pass filter can smooth the voltage and prevent the motor from producing audible whining noises.
Wireless systems:
Before transmitting or receiving wireless signals, circuits often include filters to ensure that only the desired frequencies are used. First-order filters can remove simple spurious signals, while second-order filters are sometimes used for tighter frequency control.
What about second-order filters?
While first-order filters are sufficient for many tasks, second-order filters are valuable when:
- A sharper transition between passed and blocked frequencies is required.
- Higher selectivity is needed, such as isolating a very narrow frequency band in communication systems.
- Improved stability and control over gain and phase are critical, such as in feedback control systems.
Learning second-order filters becomes natural and much easier once you are confident with the concepts and behaviours of first-order filters.
