Flexible heater design: A guide for FPC engineers

Despite their physical similarity, FPCs and flexible heaters serve opposite purposes, and this philosophical difference cascades through every design decision.
When designing an FPC, your enemy is resistance. You want thick copper (1 oz or 2 oz), wide traces, and short routing distances to move signals with minimal loss. In an ideal world, your FPC would have zero resistance.

A flexible heater inverts this paradigm. Here, resistance is the product. The heater exploits Joule’s law (P = I²R) to convert electrical energy into thermal energy. Instead of minimizing resistance, you’re engineering a specific target resistance calculated from your power requirements and available voltage: R = V²/P.

This leads to fundamentally different material choices. Copper, with its resistivity of approximately 1.7×10⁻⁸ Ω·m, is far too conductive for heating. To achieve meaningful heat generation at practical voltages, you need materials with much higher resistivity—such as Constantan (copper-nickel) at around 49×10⁻⁸ Ω·m, or Nichrome (nickel-chromium) at approximately 110×10⁻⁸ Ω·m. These alloys also offer better temperature stability than copper, providing more predictable heating performance.

Resistance design becomes a precision exercise. You start with required heat output (watts) and available voltage, calculate target resistance, then work backward from the sheet resistance of your chosen alloy foil (specified in ohms per square, Ω/□) to determine total trace geometry. Understanding “sheet resistance” is key here. Although the unit appears to be “ohms per square,” it’s actually just ohms (Ω), where the “□” (square) indicates that we’re measuring the resistance of a square-shaped thin layer.

The critical point is: a “square” means any square shape—1mm × 1mm or 10mm × 10mm have the same resistance because the length-to-width ratio is 1:1. A trace that’s 100mm long and 1mm wide has 100 squares, so if the material’s sheet resistance is 1Ω/□, that trace’s total resistance is 100Ω.
Take a practical example: suppose you need to design a 12V, 10W heater. Target resistance R = V²/P = 144/10 = 14.4Ω. Choose Constantan alloy with sheet resistance of 1Ω/□, so you need 14.4 squares. If trace width is set at 2mm, total length would be 28.8mm. But to cover sufficient heating area, you’d design it as a serpentine trace.

Power density is another critical parameter entirely absent from FPC design. You’re typically targeting 2.5 to 10 watts per square inch, determined by how effectively heat transfers from the heater into the target object and dissipates into the environment. Exceed this, and you risk damaging the substrate or creating fire hazards. This requires considering the actual application scenario: is the heater mounted on a metal housing (good heat dissipation) or suspended in air (poor dissipation)? Operating at room temperature or in extreme cold?

Design translation: from signal routing to heat distribution

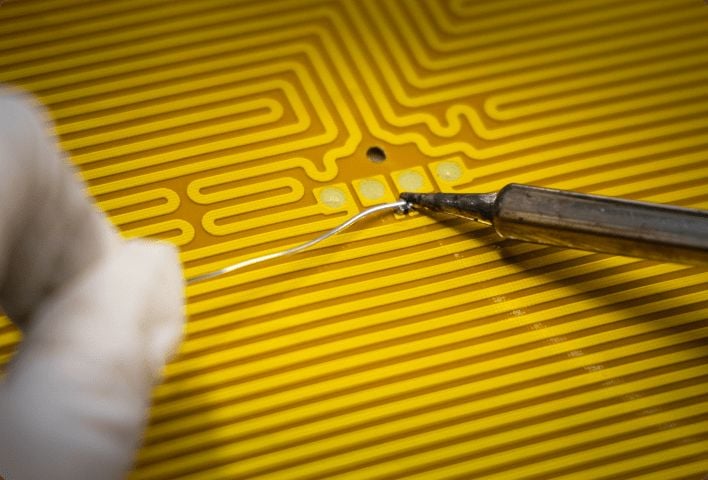

The most common heater pattern is the serpentine trace. Where FPC design seeks the shortest path, heater design deliberately elongates the trace to achieve target resistance while distributing heat uniformly. The trace must cover the entire heated area, with spacing ensuring temperature uniformity within ±5°C.

One critical difference from FPC design is corner geometry. Sharp right-angle corners create current crowding at the inner edge, leading to local hot spots. This not only causes temperature non-uniformity but more seriously can lead to localized overheating and substrate damage. The solution is to use radiused corners with a minimum inner radius of 1.5 to 2 times the trace width, the same principle as FPC strain relief design. You’ve probably already used this technique in FPC design to avoid mechanical stress concentration; now you’re just applying the same principle to thermal stress management.

Trace spacing also requires careful consideration. Insufficient spacing can lead to thermal interaction between adjacent traces causing local temperature overlap, insulation breakdown risk when aging at high temperatures, and short circuit risk during manufacturing. Generally, trace spacing should be at least equal to trace width, with larger spacing required for high voltage applications (>50V).

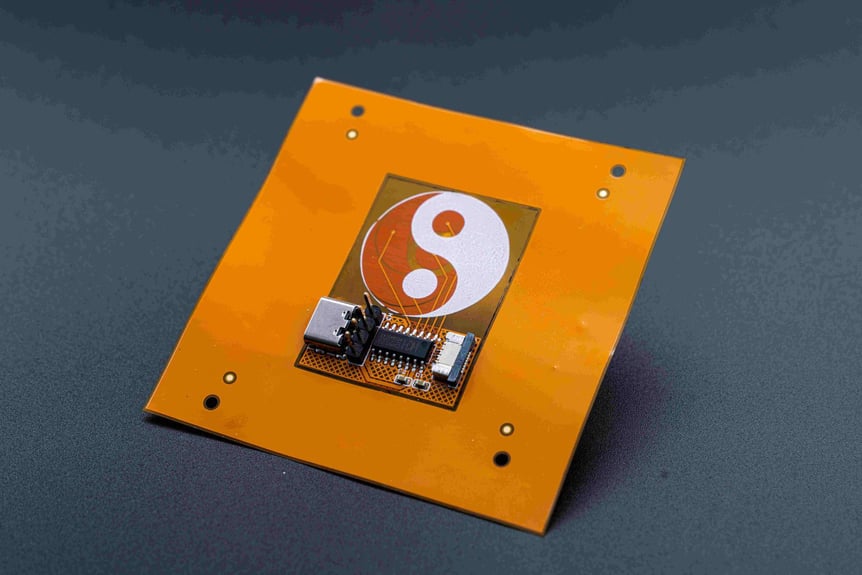

Advanced designs increasingly incorporate integrated control elements. Just as modern FPCs support component assembly (FPCBA), heaters can include surface-mount devices directly on the polyimide substrate. An NTC thermistor placed at a critical location provides real-time temperature feedback. You design standard SMT pads in your layout, and the component is soldered during assembly.

This transforms a simple heating element into a closed-loop thermal control module. Sensor placement is critical—place it at the hottest point to monitor overheating, or at the edge to monitor overall temperature. You can even integrate thermal fuses or PTC elements for over-temperature protection. When temperature exceeds a safety threshold, these components automatically cut the circuit, providing hardware-level safety protection.

From concept to prototype

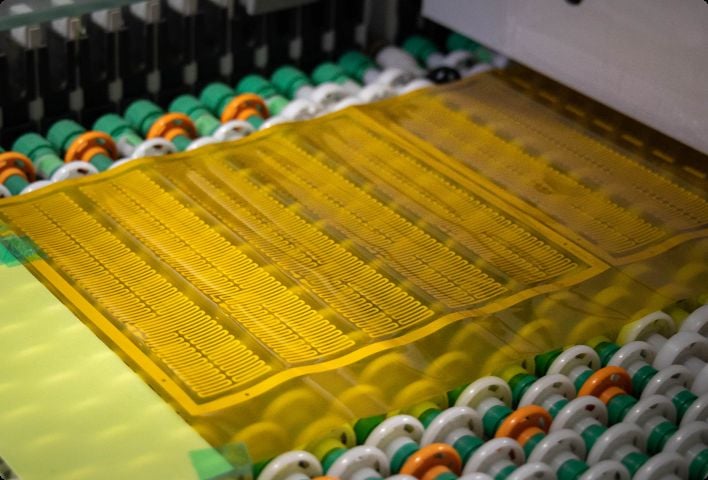

The barrier to entry has dropped dramatically. Because flexible heaters share manufacturing infrastructure with FPCs, services like JLCPCB can offer heater fabrication using existing production lines. The design file format is identical: use Gerber files with layers defined for the metal pattern, coverlay, and outline. The main difference is material specification: instead of copper-clad polyimide, you specify the alloy type and sheet resistance value.

If you’re familiar with KiCad, Altium Designer, or other PCB design tools, you already know how to generate these files. The only new content is specifying in the order notes: heating alloy type (Constantan/Nichrome), sheet resistance value, and metal layer thickness.

Design rules are slightly more conservative than FPC. Minimum trace width is typically 0.5mm (compared to ~0.15mm for FPC), minimum trace spacing is 0.5mm or greater, and minimum hole diameter (if any) is 0.5mm. The conservative reasons are: alloy materials are more brittle than copper and thin traces break easily, higher operating currents demand safety margins, and failures in heating applications have more serious consequences.

For your first design, start simple: rectangular heating area (such as 50mm × 50mm), conservative power density (3-5 W/in², about 0.5-0.8 W/cm²), low voltage (12V or 24V), simple serpentine trace pattern, and include measurement pads to verify as-built resistance. After the basic version is validated, consider integrating an NTC thermistor for temperature monitoring, adding a thermal fuse for safety protection, using a variable power supply to test performance at different power levels, and measuring temperature distribution to optimize trace layout.

When testing, use a multimeter to measure resistance before powering up to verify it matches design values (±10% is acceptable). Use an adjustable power supply starting from low voltage and gradually increasing, monitor temperature distribution with thermocouples or infrared thermometer, record steady-state temperature and heat-up time, and perform multiple thermal cycling tests to check for delamination or performance degradation.

Why this matters now

As devices move into outdoor environments, extreme climates, and miniaturized form factors, thermal management is evolving from an afterthought to a primary design constraint. In electric vehicles, battery thermal management has become key to range and safety, and flexible heaters can conform to the complex geometry of battery packs.

Solar-powered monitoring devices and weather stations need to operate in extreme cold environments, making compact heating solutions essential. In-vitro diagnostic equipment and portable incubators require precise temperature control, and flexible heaters provide customized solutions. Wearable devices and foldable phones have localized temperature control needs that require ultra-thin, bendable heating solutions.

Flexible heaters offer custom-designed thermal solutions that conform to exact geometry requirements, with thickness in tenths of millimeters and response times in seconds.

This technology isn’t exotic. If you’ve designed an FPC, you already understand substrate characteristics (polyimide’s dielectric and thermal properties), manufacturing processes (subtractive method, lamination, cutting), design tools (Gerber files, PCB design software), and design principles (trace width, spacing, corner handling). The shift is conceptual: you’re no longer minimizing resistance but engineering it; you’re not routing for signal integrity but for thermal uniformity; you’re not avoiding heat generation but precisely controlling it. The physics remains Ohm’s law and Joule’s law—the fundamentals you learned in university.

Next time your project encounters low-temperature battery failures, camera fogging, pipe freeze protection, or any thermal control challenges, consider whether a custom flexible heater might beat standard catalog parts. The process is familiar, the supply chain is mature, and you’re already halfway there. Worth mentioning, JLCPCB now offers flexible heater samples for just $1, so if you’re interested, grab one to play with and see the actual difference from FPC.
